High Efficiency Automatic Dry Mix Mortar Production Line With Packing Machine

Brand Name : MG

Model Number : MG-3.7

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 30 sets per month

Delivery Time : 20-25 working days

Packaging Details : Wooden box packing and bubble wrap packing

Name : Dry mix mortar plant

Atuomatic type : Full automatic

Voltage : 220V-440V or customized

Dimension : 8m*8m*10m

Installation service : We send engineer to oversea for guiding installation

Worker required : 3-4 person

Weight : 20-30T

Control system : Computer and PLC control

Workshop required area : 500-600 m2

Warranty : 12 months

Contact Now

2020 high efficiency good price automatic dry mix mortar plant with packing machine

Product description:

In contrast to job-site mortars, dry mortar is also called pre-mixed mortar, which is produced in the factory with dedicated facilities on batching and blending of ingredients in highly-controlled process. It can be used directly just by adding water in job site.
It has advantages of consistent quality, controlled inventory, saving time and labour costs. By adding different chemical additives, it has fine properties of bond, thermal and acoustic insulation, crack-resistance, workability, water-retention, wear-proof, anti-corrosion, etc.
Dry mortar can match different kinds of new construction materials by improving formulation. These good properties not only improve building's quality and life greatly, but also decrease the usage of mortar in a large degree. The demand for dry mortar has increased rapidly due to its outstanding merit comparing with the mortar made in job-site.

High Efficiency Automatic Dry Mix Mortar Production Line With Packing Machine

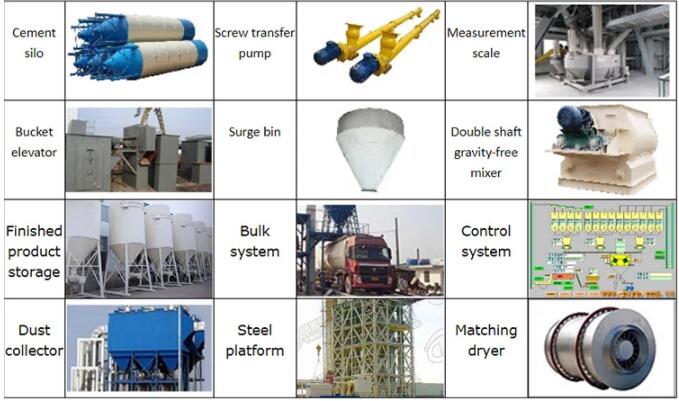

Main Configuration of Full Automatic Dry Mortar Plant:

1) Sand drying system

2) Coarse material storage system

3) Automatic weighing system

4) Conveying system

5) Mixing system

6) Air compressor system

7) Packaging system

8) Dedusting system

High Efficiency Automatic Dry Mix Mortar Production Line With Packing Machine

Main Features of Full Automatic Dry Mortar Production Line

1. It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.

2. The dry mix mortar production line uses a centralized control system, making the equipment easy to operate.

3.According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 500~5000m2.
4. We can provide one-stop service from design to installation according to our customers’ specific requirement.

Advantage:

Reasonable design, ground level installation, high production efficiency,stable performance,2-5 people can operate, only covers an area of about 15m2,moderate price, reasonable configuration, low maintenance cost, is a very ideal dry powder mortar production equipment.

Application:

This automatic ceramic tile manufacturing plant can produce following dry mortar
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, tile glue, anchorage mortar etc.
Decoration mortar: Decorative plaster, Thin set coating, inner and outer wall putty, Screed mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, AAC jointing mortar, dry sand mixture, repair mortar, mildewproof mortar, shielding mortar etc.

High Efficiency Automatic Dry Mix Mortar Production Line With Packing Machine

Technical parameter of MG full automatic dry mortar production line:

Model	Output	Equipment height	Occupied area	Manpower	Batching and Packaging
Simple type	3-4t/h	3-4m	20m2	2-3 person	Manual Batching Automatic packaging
Improved type	4-5/h	3-4m	20m2	2-3 person	Manual Batching Automatic packaging
Semi-Automatic type	5-8t/h	6-8m	50-60m2	3-4 person	Manual Batching Automatic packaging
Full-Automatic type	10-30t/h	8-13m	60-100m2	3-4 person	Automatic Batching Automatic packaging

Company services:

Pre-sales service:
Design - discuss (email/phone/chat tools) - provide solutions - access invitations and receptions - create major trust - contracts;

Sales service:
Send confirmation design and foundation drawings to customers;
Provide customers with photos and videos of the production process;
Pre-assemble the main components of the machine and test them;
Draw color and logo according to customer's requirement;
Arrange customers to check the finished products;
Pre-order logistics locations to ensure on-time delivery.
Monitor the loading and packing machine in the container, such as the packing of wooden cases, steel wire reinforcement.

After-sales service:
Tracking ship and estimated date of arrival;
Send all necessary documents and assist to retrieve the goods smoothly;
Dispatch experienced engineers to installation and commission, training;
Regular learning of equipment operation;
Remote control is readily available;
Guarantee: 12 months;
Spare parts: sent by DHL/fedex/TNT.

Warmly Welcome to contact us for more information !
