Automatic Control Tile Adhesive Machine Tile Adhesive Manufacturing Plant

Zhengzhou MG Industrial Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Automatic Control Tile Adhesive Machine Tile Adhesive Manufacturing Plant

  • 1
  • 2
  • 3

Brand Name : MG

Model Number : MG-3.7

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1 set

Price : Depends and Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 20-25 working days

Packaging Details : Wooden box packing and bubble wrap packing

Name : Tile adhesive making machine

Application : Dry Mortar Production Line,tile adhesive making machine

Features : Automatic,High Efficiency,Twin-Shaft Paddle Mixer

Advantage : Full automatic and intelligent

Raw material : Cement, Sand and additives

Voltage : 220V-440V or customized

Worker required : 3-4 workers

Workshop required : 500-1000m2

Warranty : 12 months

Mixing time : 3~5 min/batch

Contact Now

Automatic Control Intelligent Operation Wall Putty Tile Adhesive Making Machine

Product description:

MG series tile adhesive machine is based on the latest design concept in Europe, this production adopts the advanced computer auto-control system, whose production capacity can reach 30-100 thousand tons per year depend on the system configuration. The production line consists of storage system, metering and batching system, conveying system, mixing system, air compressor system, packaging system, and dedusting system, etc

Features of MG automatic tile adheive making machine:

A. It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.

B. The dry mortar production line uses a centralized control system, making the equipment easy to operate.

C. According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 500~5000m2.

D. We can provide one-stop service from design to installation according to our customers' specific requirement.

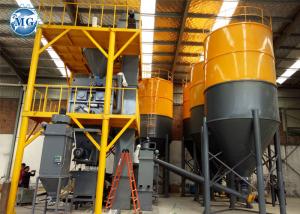

Customer Working site of MG automatic tile adhesive making machine:

Automatic Control Tile Adhesive Machine Tile Adhesive Manufacturing Plant

Technical parameter of MG full automatic tile adhesive making machine:

Model MG3.7 plant MG3.8 plant
Capacity 10-15T/H 20-30T/H
Total power 85.9kw 125kw
Workshop Area 400-500m² 600-800m²
Worker Required 2-3person 3-4person

Application of MG Automatic Dry Mortar Mixing Equipment:

Dry Mortar Mixing Equipment can produce the following dry mortars:

Bonding mortar Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc
Decoration mortar Decorative plaster, inner and outer wall putty, colorful decoration mortar etc
Protection mortar Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.

Main configuration of MG full automatic tile adhesive making machine:
1 Storage system Used for store dry raw materials
2 Feeding hopper Material feed into the mixer from here.
3 Screw conveyor Used for conveying the materials to the mixer, the conveyor can not heavy load starting.
4 Weighting system Automatically know the material weight
5 Twin Shaft Agravic Mixer

Used for mixing materials uniformly, and the special paddle blades group can break up the fibre.

6 Finished product silo Used for storing the finished goods material, waiting for packing.
7 Automatic weighing packaging machine

Used for packing finished product material in the finished products silo, it can automatically weighing and packaging, and accuracy can be + / - 0.5kg.

8 Control cabinet The power switch control for this equipment of production line.
9 Air compressor Provide air source for silos, dust collectors, premix hopper, mixer, finished product hopper, Packing machines

MG full automatic tile adhesive making machine loading to foreign customers:

Automatic Control Tile Adhesive Machine Tile Adhesive Manufacturing Plant

Successful projects of Zhengzhou MG:


Automatic Control Tile Adhesive Machine Tile Adhesive Manufacturing Plant

FAQ:

1, How about the investment of this project?

A: Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.

Low capacity low cost, we will provide you cost effective solutions as your requirement.

2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?

A: (1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.

(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.

(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.

3, How many people required to operate this dry mortar plant?

A: Usually 2-4 workers are enogh to operate this dry mortar plant.

4, What equipment and service you can provide?

A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.

5, What is the area required for this dry mortar plant?

A: According to the capacity of the dry mortar plant, the area required 300-100 m2.

6, What is the total power consumption (KW) of this dry mortar plant?

A: It is 20-80W based on the capacity of the dry mortar plant.

7, What is the capacity of your dry mortar plant?

A: We have dry mortar plant with capacity 3-30T/H as your requirement, and also we can customize the dry mortar plant as your capacity requirement.

8, How long is the guarantee period?

A: 12 months, within this period, we provide you spare parts and services for free.

9, Can you install the dry mortar plant in my country?

A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.

If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.

Warmly Welcome to contact us for more information !
